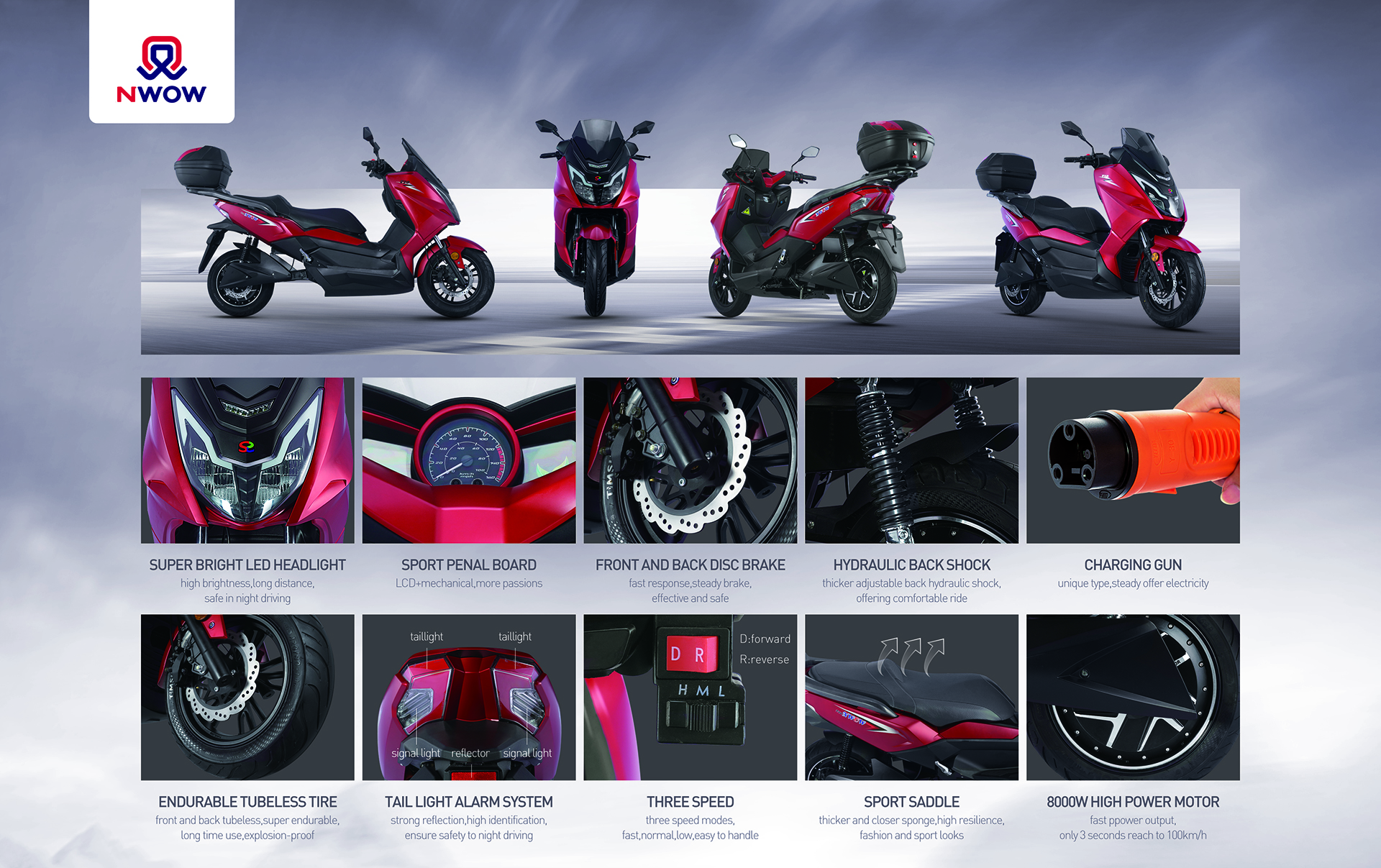

Front and rear hydraulicshock absorption
Shock-absorbing effect is good, greatly enhance riding comfort
Vehicle NameNWOW-02A
Parameters
- Configuration Code(24th edition)
- Loading Capacity2
- Size(Length * Width * Height) 2320*770*1320mm
- Max Speed120km/h
- Input VoltsAC220V (adjustable 110V)
- Distance between axles1560mm
- Distance between wheels/ mm
- Minimum Ground Clearance>125 mm
- Minimum Turning Radius≤ 2.5m
- Brake Distance（30km/h）≤7 m
- Slope-Climbing≤15 °
- Battery72V120AH(Lion）
- Battery Weight50KG
- Max load150kg
- Weight(excluding battery)165.5kg
- Mileage250-270km (uniform speed of 30km/h)
Electronic control parameters
- ContronlFOC Vector Controller, 72V800A
- MotorDC permanent magnet wheel motor, 72V800TT
- Charger84V20A, fully charged for 6-8 hours
- Lights & SignalsFront headlights/turn signals/tail lights/horn
- AcousticsNothing
- SwitchesElectric door lock/light/three speed/dual flash/one key power-off/reverse
- Panel boardLCD pointer instrument, 1-wire communication&CAN instrument
- Other functionsSingle support power-off, USB charging, heating switch handle (optional)
- Windshield wiperNothing
Body and chassis
- SeatsTwo person economy seat
- Body & FrameTubular frame
- BodyNothing
- Body/Sealed DoorAutomotive grade pedal leather
- Windshield & Side mirrorsEquipped with instrument windshield and driver's dual rearview mirrors
- Turning SystemTurn the steering wheel
- Front axle & SuspensionHydraulic shock absorber with a diameter of 32
- Rear axle & SuspensionHydraulic shock absorber with a diameter of 32 pipe
- Brake systemFront and rear disc brakes
- TyreFront 120/80-14, rear 140/60-13 vacuum tire/front wheel hub 3.0-14 aluminum wheel
- Safety BarNothing
Loading
- 20 feet (for small-sized models)Semi scattered SKD16 units. Expected 30 sets of fully dispersed CKD, to be verified.
- 40 cabinetsSemi scattered SKD34 units. 70 sets of fully dispersed CKD are expected to be verified.
Others
- OthersStandard raincoat
- Color profileMaroon, Suzuki red, Moon white, Matte black
