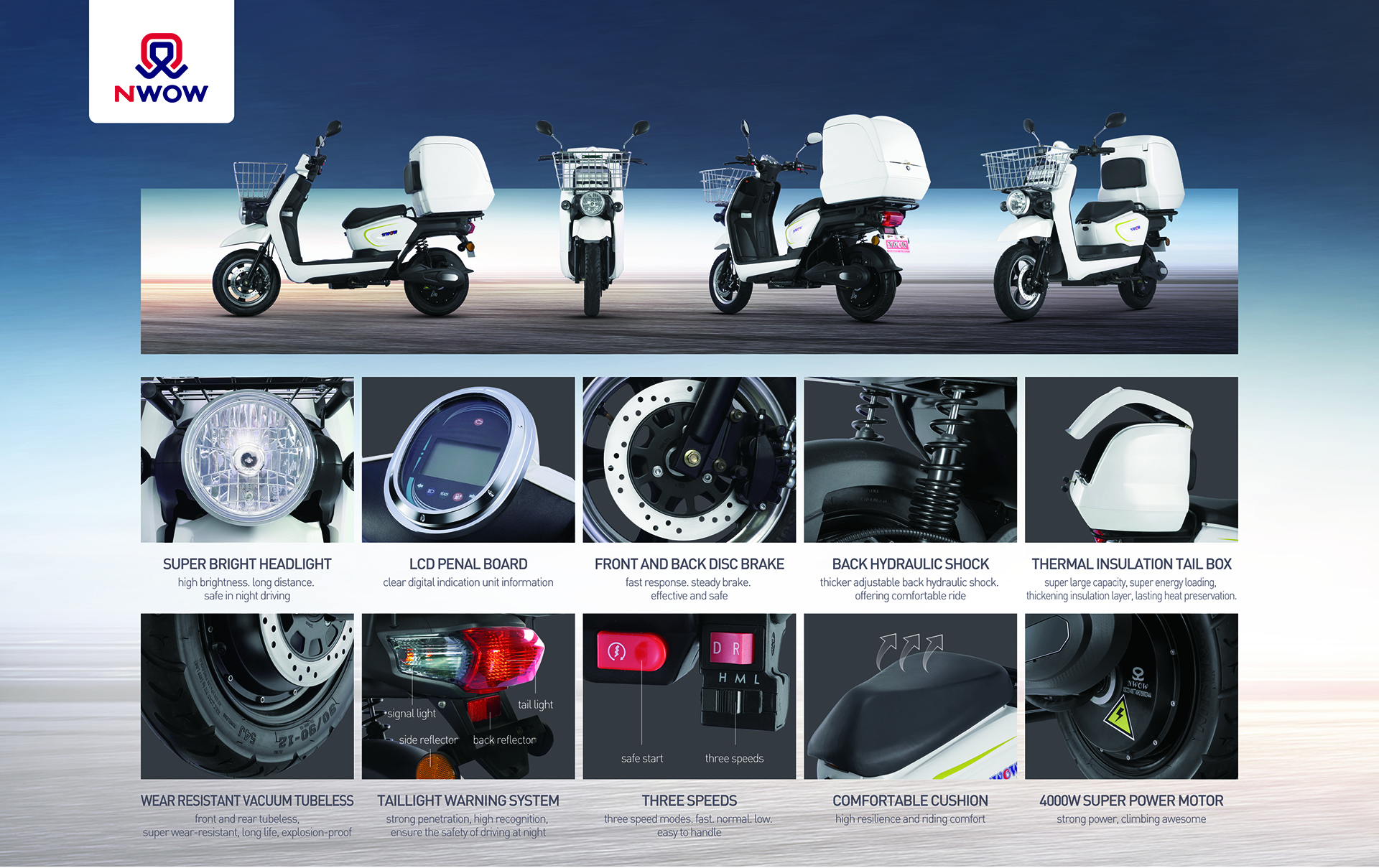

Front and rear hydraulicshock absorption
Shock-absorbing effect is good, greatly enhance riding comfort
Vehicle NameLOG22
Parameters
- Configuration Code(24th edition)
- Loading Capacity1
- Size(Length * Width * Height) 1930*730*1290mm
- Max Speed45km/h
- Input VoltsAC220V (adjustable 110V)
- Distance between axles1350mm
- Distance between wheels/ mm
- Minimum Ground Clearance>185mm
- Minimum Turning Radius≤2.08 m
- Brake Distance（20km/h）≤5 m
- Slope-Climbing≤15 °
- Battery72V40AH(Lion）
- Battery Weight18.5KG
- Max load
- Weight(excluding battery)95kg
- Mileage110km
Electronic control parameters
- ContronlFOC Vector Controller, 72V200A
- MotorDC permanent magnet wheel motor, 72V300TT
- Charger84V5A, filled with 6-8H
- Lights & SignalsFront headlights/turn signals/tail lights/horn
- AcousticsNothing
- SwitchesElectric door lock/light/three speed/reverse
- Panel boardLCD instrument panel, one line communication instrument panel
- Other functionsSingle support power-off, USB charging
- Windshield wiperNothing
Body and chassis
- SeatsSolo seat
- Body & FrameTubular frame
- BodyNothing
- Body/Sealed DoorAutomotive grade pedal leather
- Windshield & Side mirrorsNo windshield, driver's dual rearview mirrors
- Turning SystemTurn the steering wheel
- Front axle & SuspensionHydraulic shock absorber with a diameter of 31
- Rear axle & SuspensionHydraulic shock absorber with a diameter of 32 pipes
- Brake systemFront and rear disc brakes
- TyreFront and rear 90/90-12 vacuum tires/front wheel hub 2.15-12 aluminum wheels
- Safety BarNothing
Loading
- 20GPSKD 20 units. CKD 40 sets
- 40HQSKD 40 units. CKD 90 sets
Others
- OthersStandard raincoat
- Color profileMatte black, Moon white
